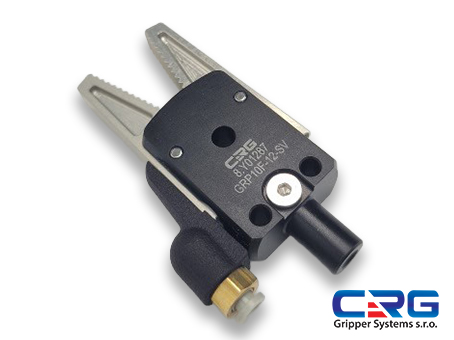

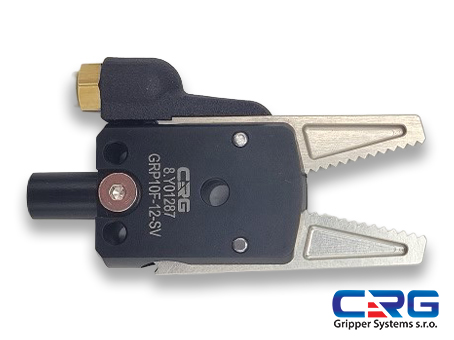

GRP10/12F-12-SV
CRG Gripper Systems s.r.o. is introducing the GRP10/12F-12-SV pneumatic gripper to the European market. This model features toothed jaws and stands out because the part-presence detection is handled by a vacuum system! As a result, there is absolutely no need for any electrical components.
| PN | Model | Dimension A | Gripping Force | Weight |
|---|---|---|---|---|
|
8.Y01287 |
GRP10F-12-SV |
⌀10 mm |
80 N |
55 g |
|
8.Y01285 |
GRP12F-12-SV |
⌀12 mm |
80 N |
57 g |
Basic Properties
- Piston bore ⌀12 mm

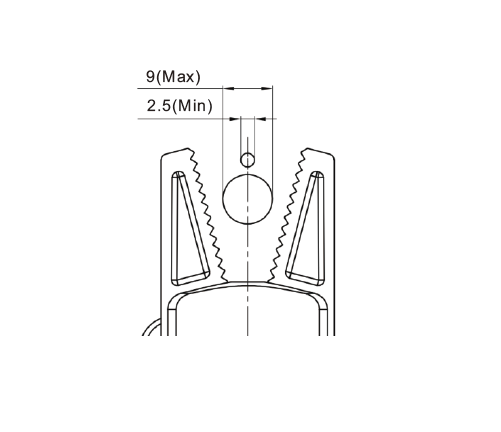

- Gripping range 2.5 – 9 mm
- Single-action opening with spring
- Toothed jaws
- Presence detection by vacuum
